Kern Pyramid Nano

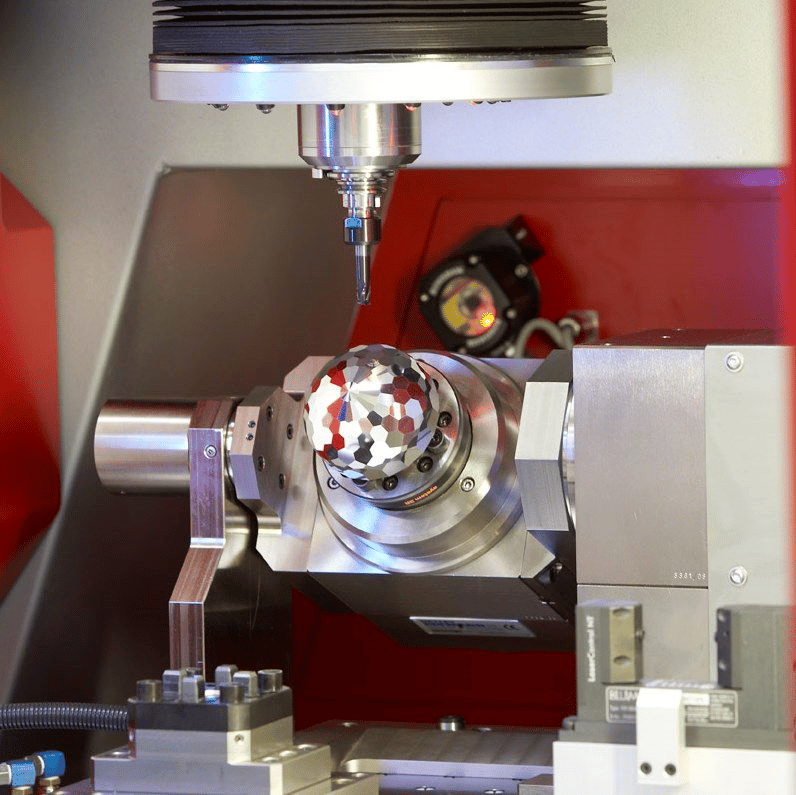

KERN Pyramid Nano 5 Axis Disco Ball Photo

What Is The Pyramid Nano?

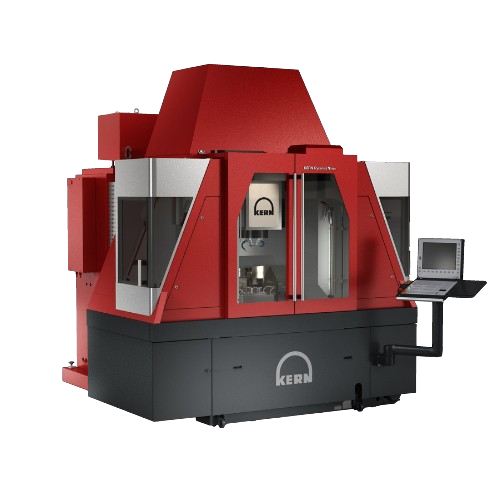

The Pyramid Nano machining centre is KERN’s 3-axis masterpiece and one of the highest precision machines available for regular production in the world.

This highly advanced machine’s base is constructed from KERN Amorith, a material developed with exceptional tensile strength and minimal thermal conductivity. The axes movement combines hydrostatic guideways as well as hydrostatic drives, which are not only  temperature controlled, but also promise virtually wear-free precision throughout the lifetime of the machine guaranteeing outstanding accuracy and surface finishes on the workpiece.

In 3 and optional 5 axis machining modes the flexibility of the machine is unsurpassed as not many machines can claim to mill, drill, jig bore and jig grind in the same machining operation. For jig grinding automatic wheel dressing in-cycle can be performed. Combined with internal or external workpiece changers the Pyramid Nano is truly a production work of art.

The Kern Pyramid Nano is designed for applications that demand the highest precision and surface quality as well as high cutting performance. It can have an internal workpiece changer or have an external workpiece changer fitted so it can easily produce high accuracy parts in series, as long as it is in a temperature controlled environment, for hours on end.

X travel: 500 mm

Y travel: 500 mm

Z travel: 400 mm

Potential accuracy on the workpiece +/- 1 µm



KERN_Pyramid_Nano_Photo-removebg-preview

Why Choose Rainford?

  Sole UK agents for Kern

  Highly knowledgeable Kern specialists

  Can advise on products to suit your business needs and fit your budget

  Great communication and first-class customer service

  ISO 9001 certified

Download KERN Pyramid Nano Brochure

4. KERN Pyramid Nano EN
Maximum precision for μ-precise series production

The Kern Pyramid Nano is designed for applications that demand the highest precision and surface quality as well as high cutting performance.

  • Hydrostatic guides and drives
  • Intelligent temperature management
  • Highest productivity and precision
  • Wear-free precision throughout its lifetime
  • Optimised for specific applications
  • Automation and productivity
  • Jig grinding
  • Multi-shift operation without operators
