Geometrically symmetrical structure of the X-Y-Z coordinate carriage, ensuring uniform thermal expansion
Thermal stability at Tool Centre Point (TCP) in the X-Y plane without compensation
Ultra-high rigidity and vibration dampening qualities due to nodular cast iron framework resulting in superior tool performance
Optimised contour accuracy at high path speeds
Extremely high parallel traversing accuracy due to double drives in the X and Y axes

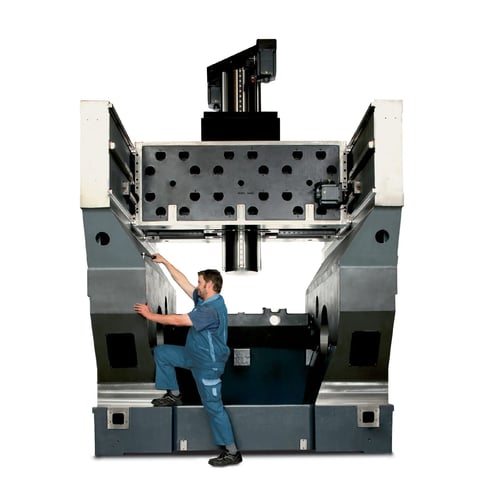

Base Frame
Using a GS 1400 as an example
The "Heavy Weight" for Milling and Turning
Extremely rigid, integral base frame made of one piece. Fully statically stressed frame components are made of grey cast iron. All dynamically stressed frame elements are made of nodular cast iron.
Picture: Basic Structure of the GS 1400

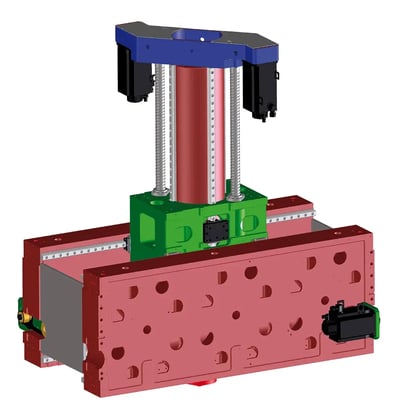

Picture: Travel System Carriage of the GS 1400
TRAVEL SYSTEM CARRIAGE
Design Characteristics
Carriage designed as a Box-in-Box system with symmetrical and structured mono block cross slide, as well as integrated Z-Axis slide and motor spindle.
Multiple guide-ways in all linear axes.
Single- and double-ball screws with Servo drives for the linear axes.
NC SWIVEL AND ROTARY TABLE (SDK)
Gear or torque drive technology according to the application-specific design
Gear drive in swivel and rotary axes for economical 5-Axis machining.
OR
Direct torque drives, on rotational axes for smooth and highly dynamic oscillating machining tasks.

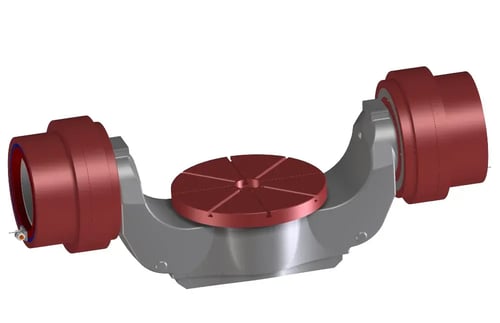

Picture: NC Swivel and Rotary Table (SDK) of the GS 800NE

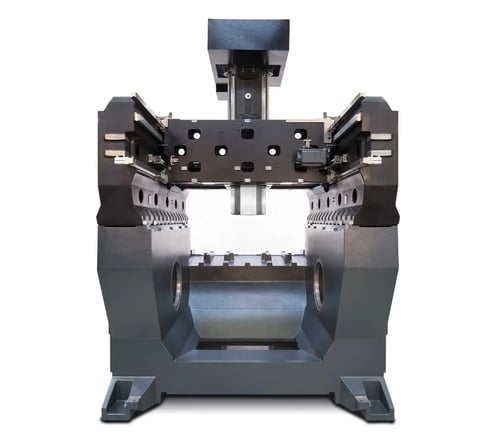

Picture: ALZMETALL-SPECIFIC GANTRY-CONCEPT (ASGK) of the GS 1200
In the framework design, the three linear motion axes are assigned to the machine gantry.
Centrally mounted Z-axis carriage within the cross beam.
GANTRY-CONSTRUCTIONS
Conventional and modified Gantry Design
4-Fold internal linear guides.
Deviation (deflection) is reduced by a factor of 2.3, and thus rigidity is 2.3 times higher than "on top-mounted" systems.
Less positional error at the tool centre point (TCP).
Significantly increased cutting tool life.

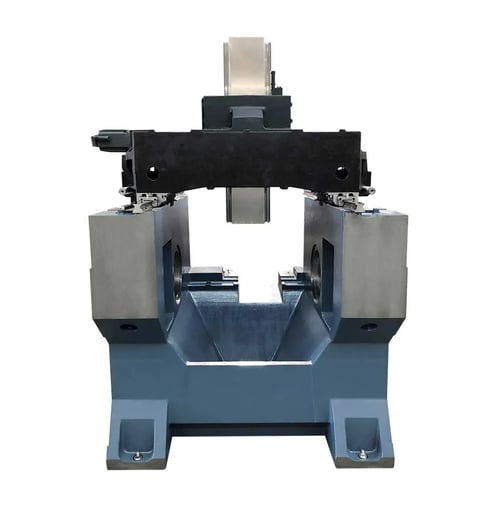

Picture: ALZMETALL-SPECIFIC GANTRY-CONCEPT (ASGK) of the GS 600
GS 600 - Impeller
Company Portrait
ALZMETALL is a renowned company with global activities and is recognised internationally by its high-quality reputation and brand name.
For more than eight decades, we have been the leader in technology for drilling, milling and casting.
Alzmetall products have proven themselves in mechanical engineering applications, in the automotive industry, in the mould and die business, in the aerospace sector, as well as in many mid-size mechanical engineering enterprises.

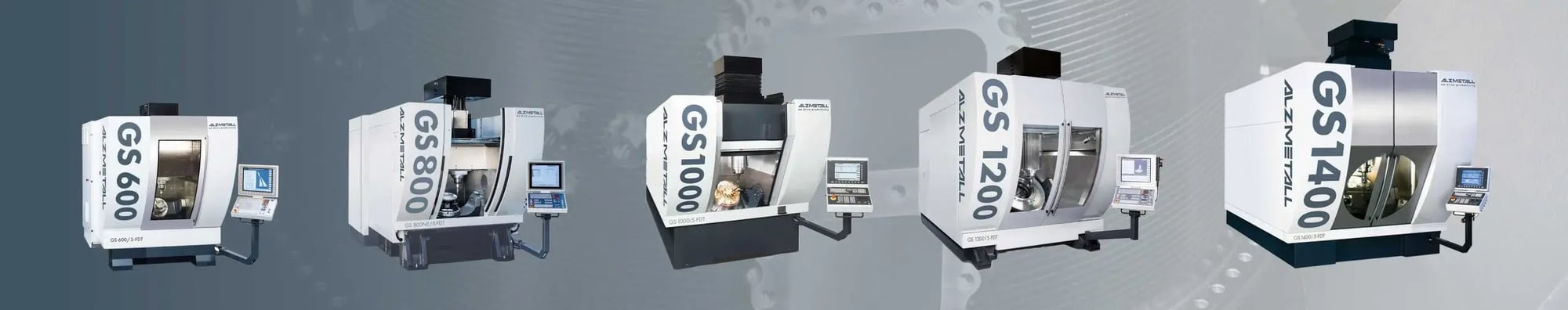

Unrivalled precision for micro-accurate series production
The ALZMETALL GS series is engineered to deliver outstanding rigidity and superior vibration damping for demanding machining applications. Its thermo-symmetrical base frame construction — extending from the machine base right through to the spindle — ensures precise and controlled force transmission throughout the machining process.
Solid, rigid base frame made of grey cast iron
Dynamic stressed machine components are made of nodular cast iron
Alzmetall-specific gantry concept (ASGK) with box-in-box system
Fourfold linear guide system in the Z slide (Z-Axis)
Rotation axes (A and C Axis) with torque drives, optional
Hybrid machining (Milling, turning, grinding) in one workpiece setup
